Explosion-Proof Chiller

15 Ton Air Cooled Explosion-Proof Chiller
  • 15 Ton Air Cooled Explosion-Proof Chiller
  • 15 Ton Air Cooled Explosion-Proof Chiller
  • 15 Ton Air Cooled Explosion-Proof Chiller
  • 15 Ton Air Cooled Explosion-Proof Chiller

15 Ton Air Cooled Explosion-Proof Chiller

This 15 Ton air cooled explosion-proof chiller is a particularly chiller unit that installed in harsh or explosive industrial applications,such as Chemical Plants,Petrochemical Plants and Laboratories and so on.

Chiller Model:          TW-20AD

Cooling Capacity:    59.08KW(50805 kcal/h) @ 50HZ
                                69.12KW(59442 kcal/h) @ 60HZ

Refrigerant:             R22/R407c/R410a/R134A/R404a

Power Supply:         380V/50HZ /3PH (Standard)
                                208-480V/60HZ/3PH(Customized)

Compressor Brand:Panasonic/Danfoss Scroll Compressor

Evaporator Type:     Coil in SS Water Tank (Standard)
                                Shell and Tube(Customized)

Noted:Fan,water pump and electrical box is with explosion-proof

    Content
    ▷1.
    What is An Explosion-Proof Chiller?
    ▷2.
    Why Explosion-Proof Chillers Are So Important
    ▷3.
    How Does an Explosion-Proof Chiller Work?
    ▷4.
    Types of Explosion-Proof Chillers
    ▷5.
    What Are The Main Components of Explosion-proff Chillers?

           5.1 Compressor

           5.2 Evaporator

           5.3 Water Pump

           5.4 Condenser

           5.5 Electric Box
    ▷6.
    What are the Applications of an Explosion Proof Chiller?
    ▷7.
    Contact Us to Learn More About Our Explosion-Proof Chillers

    1.What is An Explosion-Proof Chiller?

    An Explosion Proof Chiller is a particularly chiller unit that installed in harsh or explosive industrial applications,so it is with reinforced design to protect the chiller’s components from ambient flammable materials that could cause an explosion.

    The explosion proof chiller must be sealed wiring to protect the air from stray sparks that could ignite any vapors or flammable gases. Chillers utilized within hazardous environments must have adequate physical protection and special safety features built-in to prevent damage to sensitive components.Adhering to these guidelines and fulfilling our customers’ needs require us to custom-design many of our explosion-proof chillers.


    Air Cooled Explosion proof Chiller

    2.Why Explosion-Proof Chillers Are So Important

    In order to protect the safety of employees and facilities, reducing the likelihood of explosions becomes the primary goal of any business owner. Some work-sites are more dangerous than others. Reduce the risk that sparks from the chiller could ignite explosive or flammable materials, which is why explosion-proof chiller is a safety requirement in many industries. Although the price of all explosion-proof equipment is high, the cost is far less than the loss of life caused by industrial accidents due to the use of the wrong machinery.
    In addition to safety concerns, explosion-proof chillers are required by law in many locations where with combustible materials in the air. In addition to the danger of igniting flammable substances, non-compliance could result in huge emissions.

    3.How Does an Explosion-Proof Chiller Work?

    There are many types of explosion-proof chillers, and how each one works depends on the components used. For example, there are screw and scroll compressors, air-cooled and water-cooled condensers. The components of the chiller system are not explosion-proof. The design of the entire system. But these components determine the ultimate efficiency of the chiller and the temperatures it can reach. Use this information when choosing a chiller for your workplace.
    Most chillers operate in the same way, in short, by continuously flowing refrigerant to the cold end of the evaporator at the desired temperature. The chiller then pumps the cooled fluid through the process to dissipate heat from the equipment and funnel it back to the return side. The range of chiller we choose is -60 F to 30 F. If you have any special requirements for the cooling of chiller, please contact us .
    The refrigerant starts the process in a mixture of liquid and gas. The gas and liquid enter the evaporator, where the heat converts the refrigerant into a low-pressure gas. This gas enters a compressor, which compresses the gas to a high pressure state using one of several methods. This gas moves to the condenser, which can cool the refrigerant with water or air. In a condenser, the coolant releases heat and condenses into a liquid. When the liquid is at high pressure as it passes through the expansion valve, the expansion valve controls how much cooled refrigerant enters the evaporator and starts the cycle again.


    Air-Cooled Explosion Proof Chiller Installation


    Water-Cooled Explosion Proof Chiller Installation

    4.Types of Explosion-Proof Chillers

    We offer explosion proof chillers from 1/2 ton to 200 tons to cool all sizes in your application. Learn more about our explosion proof chiller.

    Scroll Explosion Proof Chiller
    Our single-, dual-, and multi-circuit scroll explosion proof chillers are available with scroll compressor, an industry-leading and long-lasting solution.

         ▪ Air- and Water-cooled Scroll

         ▪ 1 - 60 hp (1KW- 200KW)

         ▪ Single-, dual-, or multi-circuit(Three or Four )

         ▪ Panasonic or Danfoss scroll Compressor

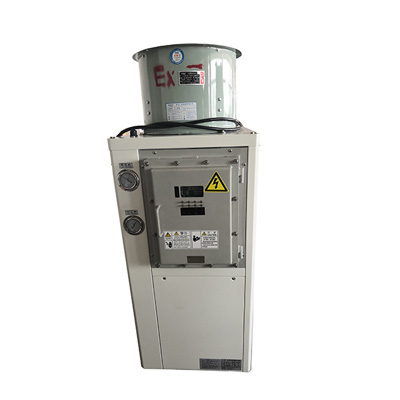

    4HP Air-Cooled Scroll Explosion Proof Chiller                                      30HP Water-Cooled Scroll Explosion Proof Chiller

    Screw Explosion Proof Chiller
    Our Single or Dual-circuit screw explosion proof chillers feature Hanbell or Bizter screw compressors for long-lasting performance and reliability.

         ▪ Air- and Water-cooled

         ▪ 60 - 300 hp (200KW-1500KW)

         ▪ Single or Dual-circuit



    5.What Are The Main Components of Explosion-proof Chillers?

    5.1 Compressor
    The compressor is the key mover in explosion proof chiller because it produces pressure variations to stir the refrigerant around.
    From 1/2HP(1/2 Ton) to 60HP(5oTon) brewery chiller , which is with Panasonic or Danfoss brand Scroll compressor ,
    Above 60HP(50 Ton) explosion proof chiller , which is with Hanbell or Bitzer brand Screw compressor ,
    These brand compressors are with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

    Panasonic Compressor


    Danfoss Compressor

    5.2 Evaporator
    The evaporator is a crucial component of explosion proof chiller, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. There are three types of evaporators : coil in water tank evaporator , shell and tube evaporator, 304SS stainless steel plate type evaporator.

    Coil in SS Water Tank Evaporator


     SS Plate Type+ Water Tank Evaporator



    Shell and Tube Evaporator

    5.3 Water Pump
    The water pump for explosion proof chiller is explosion-proof .


    Explosion Proof Water Pump


    5.4 Condenser

    The condenser for air cooled explosion chiller is equipped with efficient cross-seam fins and female threaded copper tubes for high heat exchange efficiency and good stability. The fan on the top of explosion proof chiller is also explosion proof .


    Aluminum fin+fan Condenser for explosion proof chiller

    The condenser for water-cooled explosion proof chiller is shell and tube ,with the internal copper tubes employing an outer thread embossing process.This design effectively enhances the heat exchange efficiency between the refrigerant and water during the process. Compared to traditional smooth copper tubes, the outer thread embossing process increases the surface area of the copper tubes, thereby expanding the contact area for heat exchange and improving the thermal conductivity of the condenser. This optimization design allows the condenser of the water-cooled chiller to transfer heat from the refrigerant to the water more rapidly and consistently, enabling the water to carry away the heat.


    Shell and tube Condenser for water-cooled explsoion proof chiller

    5.5 Electric Box
     The electric box for chiller is also explosion proof .


    Explosion Proof Electric Box

    6.What are the Applications of an Explosion Proof Chiller?
    Explosion-proof chillers have a variety of applications where cooling and protection from any type of explosion is required, including as below :

    Chemical Plants
    Chemical factories may generate or store potentially flammable substances. Even in storage spaces, the facility will need explosion-proof equipment.

    Petrochemical Plants
    To distinguish a petrochemical plant from an oil refinery, the former manufactures substances from petroleum while the latter refines crude oil. Both handle hazardous materials. The popularity of many petrochemicals, such as gasoline, is partly due to their flammability. The same properties also put petrochemical plants at risk of fire.

    Cooling Flammable Liquids
    Flammable liquids often emit hazardous vapors. These vapors make explosion-proof chillers and other equipment in the space required. If the fluid remains sealed, the area will only require Class I, Division 2 approved equipment.

    Refineries
    Petrochemical refinement requires extreme caution with all materials used. Flammable gases produced in refineries require Class 1 explosion-proof chillers.

    Sample or Process Analyzers
    Using sample or process analyzers, workers can identify the chemical makeup of various substances. Explosion protection in the sample analysis area saves lives as the components are unknown and potentially harmful elements.

    Granaries
    Flour is very flammable. Ask anyone who lives near a granary and has heard stories of the explosions. The fine dust in the air only needs a small spark to detonate. This is why silos and grain bins require explosion proof equipment.

    Laboratories
    Ventilation in laboratories is critical to the safety and health of workers. Fire safety and explosion protection are also important. Anywhere volatile, flammable vapors or gases are present, special electrical components are required to prevent stray sparks that could ignite.

    7.Contact Us to Learn More About Our Explosion-Proof Chillers

    Don’t delay in making the best decision for your manufacturing business and your future by increasing your production capabilities with explosion proof chiller. Contact us today for more information on a explosion-proof chiller.
    Our probessional team will help you with any questions you have on our explosion proof chiller units. We look forward to hearing from you!


             15 Ton Air Cooled Explosion Proof Chiller Technical

                              Specifications  MODEL:TW-20AD

    Model
    TW-20AD
    nominal cooling capacity
    KW
    50HZ
    59.08
    60HZ
    69.12
    Ton
    50HZ
    16.80
    60HZ
    19.65
    Chilled Water temperature range
    5~35
    Max power consumption
    kw
    18.8
    Full load
    Amp
    52.7
    power source

    3PH-380V-50HZ (Standard)
    3PH-220-480V-60HZ(Customized)
    refrigerant
    type

    R22/R407C/R410A/R134A
    control

    External balance of thermal expansion valve
    compressor
    type

    hermetic scroll type
    power
    kw
    7.5*2
    QTY.
    Unit
    2
    condenser
    type

    Efficient aluminum finned copper sleeve+low noise external rotor fan
    air volume

    m3/h

    20000
    fan motor
    kw
    0.78*2
    evaporator
    type

    Coil in Water tank evaporator(Standard)
    shell and tube Type Evaporator(Customized)
    Cooling water flow rate

    m3/h

    10.16
    Tank volume
    L
    280
    inlet and outlet connection(BSP)
    inch
                                 2-1/2’’
    Water pump
    power
    kw
                                2.2
    Water Flow
    M3/h
                               25.2
    Max.Pressure
    Bar
                                2
    safety devices
    Compressor overheating protection,over-current protection,high and low pressure protection,over-temperature protection,traffic protection,phase sequence/phase loss protection,low level protection,frost protection
    dimension
    mm
    2030*960*2020
    weight
    kg
    660

    1 . Testing results under above conditions: Inlet/outlet chilled water temperature 12℃/7℃, condensing temperature 45℃.

    2. The above parameters will be updated continuously. If you have special request, please send your technical requirements before placing an order.
    1.How does a chiller system work?
    Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.

    2.How to calculate right cooling capacity for chillers?
    One of the most frequently ask about how we can know the cooling capacity for chillers. Let’s see the below formula.
    Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86
    Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
    Oversize the chiller by 20% Ideal Size in KW = KW x 1.2
    Noted : T1:Incoming Water Temperature (℃)      T2:Required Chilled Water Temperature(℃)

    For example, what size of chiller is required to cool 5m³ water from 25°c to 15 °c in 1 hour?
    Temperature Differential = 25℃-15℃=10℃
    Water Flow Rate = 5 m³/hour
    Cooling Capacity in KW = 5 x 10 ÷ 0.86 = 58,14 KW
    Oversize the chiller = 58.14 x 1.2 = 69.76 KW
    69.96kw cooling capacity for chiller is required.

    3.Types of chiller system?
    There are two types of chiller :Air Cooled Chiller and Water Cooled Chiller.
    Water cooled chiller needs a separated water cooling tower and water cooling pump ,if you don‘t have exsiting water cooling tower,we suggest you use air cooled chiller; But if your ambiemt temperature is very high above 55℃ ,we suggest you use water cooled chiller , as it is easier to dissipate heat for water cooled chiller with water cooling tower.

    4.Whether chillers need built-in Tank or not?
    In a chiller system, a tank is usually equipped to buffer the thermal load of the chiller.
    But should we choose a built-in type of tank or an external type of tank?
    A chiller with a built-in tank is easier to install and can be used simply by connecting a water pipe to your application.
    But it has a limited capacity and is not suitable for applications with larger chilled water demands.External tank’s capacity can be customized according to specific needs.
    It can buffer a larger heat load, store more chilled water, but the installation will be more troublesome.
    If you don‘t have external water tank ,we suggest our chiller built-with water tank ,which is easy for you to install.

    5.Cooling capacity unit conversion?

       1 KW=860 kcal/h ;

       1 TON=3.517 KW;

       1 KW=3412 Btu/h;

    6.This chiller could do heat recovery?
    Yes,please kindly send us the temp and water volume per hour.

    7.Chiller maintenance?
    Step 1: Keep Tubes Clean
    Step 2: Ensure a Leak-free Unit
    Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
    Step 4: Analyze Oil and Refrigerant
