Oil Chiller

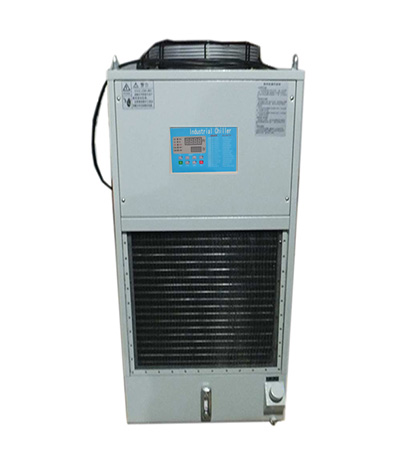

2HP 5KW Hydraulic Oil Chiller
  • 2HP 5KW Hydraulic Oil Chiller
  • 2HP 5KW Hydraulic Oil Chiller
  • 2HP 5KW Hydraulic Oil Chiller

2HP 5KW Hydraulic Oil Chiller

This 2HP/5KW hydraulic oil chiller a reliable working cooling unit for cooling hydraulic oil and lubricating oil of processing machines.

Chiller Model:          TW-2RAPO
Cooling Capacity:    5.65KW(4859 kcal/h) @ 50HZ
                                6.8KW(5831kcal/h) @ 60HZ
Refrigerant:             R22/R407c/R410a/R134A/R404a
Power Supply:         220V/50HZ /1PH (Standard)
                                208-240V/60HZ/1PH(Customized)
Compressor Brand: Panasonic Scroll Compressor
Evaporator Type:      SS Plate+Oil Tank (Standard)
    Content
    ▷ 1.    What is Oil Chiller?
           4.1 Compressor
           4.2 Evaporator
           4.3 Oil Pump
           4.4 Condenser
           4.5 Controller Panel

    1.What is Oil Chiller ?
    Oil Chiller is a reliable working cooling device for cooling hydraulic oil and lubricating oil of processing machines. It cools the hydraulic power pack of the oil by providing a supply of chilled water to circulate and regulate the temperature at a precise value.
    The oil chiller performs cooling work under its efficient working parts, such as brazed plate evaporator, scroll compressor, copper tube condenser with aluminum fins condenser, micro temperature controller, safety device, oil pump and oil tank, etc.
    Oil Chiller

    2.How Does Oil Chiller Works?
    The principle of vaporization and heat absorption of Freon in the evaporator is used for cooling.

    When the oil chiller is working, the oil pump pumps oil from the oil tank in the machine to the evaporator of the oil chiller for heat exchange, and the cold oil is cooled from the cold oil.

    The oil chiller takes the output and sends it back to the storage tank to mix with the hot oil.

    The continuous circulation of oil reduces the temperature of the entire oil tank.

    The temperature controller of the oil chiller automatically controls the opening and closing of the unit through the temperature sensor, so that the oil temperature is automatically constant at the set temperature.

    3.What Are Types Of Oil Chillers ?
    There are two types of precision oil chiller : one is Box Type Oil Chiller ,the other is Immersion oil chiller .
    Box type oil chiller is built with oil pump and oil tank;
    Immersion oil chiller is no built with oil pump and oil tank , it use Stainless steel coil as heat exchange.



                                       Box Type Oil Chiller                                                                Immersion Oil Chiller




    Features and Advantages of Oil Chiller :
              ▪ Prevent mechanical spindly work due to the temperature rise and affect accuracy;

          ▪ Maintain the stability of the processing solution ,and improve the precision and efficiency;

          ▪ Stable hydraulic and provent oil shock;

          ▪ Easy operation low noise;corrosion preventing  tube obstruction;

    4.What Are The Main Components of Box Typ Oil Chiller ?

     4.1 Compressor
    The compressor is the key mover in Oil Chiller because it produces pressure variations to stir the refrigerant around.
    For 5KW chiller , which is with one unit Panasonic brand compressor, using R410A/R407C refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.

    Panasonic Compressor

    4.2 Evaporator
    The evaporator is a crucial component ofOIL chiller, as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. There are three types of evaporators :304SS stainless steel plate type + Oil Tank as heat exchanger.

    SS Plste + Oil Tank Evaporator

    4.3 Oil Pump
    The oil pump is designed to increase the pressure and the flow of the chilled oil in a closed space.


    Oil Pump

    4.4 Condenser

    The condenser for oilchiller is equipped with efficient cross-seam fins and female threaded copper tubes for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.


    Aluminum fin+fan Condenser

    4.5 Controller Panel
    Tongwei chillers use precision digital temperature controller, it RS485 communication port，which can do remote monitoring and control. Simple operation, low failure rate, high safety factor, easy installation.


    Controller Panel

    5.What are the Industrial Applications of Oil Chillers?
    You can use the oil chillers in different industrial chilling applications to control the cooling temperatures you want.

    Here are some of the industrial applications where you will use the oil chillers.

        ▪ CNC Machining Centers
        ▪ Inner and Outer Grinding Machine Applications
        ▪ Electric Discharge Machine Applications
        ▪ Hydraulic Oil Stations and Hydraulic Machinery Applications
        ▪ Grinding Machine Applications
        ▪ Integrated Machining Applications
        ▪ Woodworking Industry
        ▪ Broaching Machine
        ▪ Hydraulic Machinery
        ▪ High-speed Lathe

    6.Contact Us to Learn More About Our Hydraulic Oil Chillers

    Don’t delay in making the best decision for your manufacturing business and your future by increasing your production capabilities with hydraulic oil chillers. Contact us today for more information on a hydraulic oil chiller.
    Our probessional team will help you with any questions you have on our hydraulic oil chiller units. We look forward to hearing from you!


              2HP/5KW Hydraulic Oil Chiller Technical Information

                                         Model :TW-2RAPO

    Model

    TW-2RAPO

    Nominal Cooling Capacity

    Kcal/h

     4859

    KW

    5.65

    Max Power Consumption

    kw

    2.65

    Power Source



     1PH -220V -50HZ(Standard)
    1PH -208-220V -60HZ (Customized)

    Refrigerant

    type



    R407C

    control



    Capillary

    Compressor

    type



    hermetic scroll

    power

    kw

    1.75

    Condenser

    type



    Efficient aluminum finned copper sleeve+low noise external rotor fan

    fan motor

    kw

    0.15

    Evaporator

    type



        Stainless steel Plate

    inlet and outlet connection

    inch

                          3/4

    Oil Pump

    Power

    Kw

    0.75

    Max flow rate

    m3/h

    2.4

    Kgf/cm2,max/outlet pressure loss

    3

    Oil viscosity Scope

    0.5-300 CST/Hydraulic oil,lubricating oil 0.5-300CST

    Oil Tank

    L

    33

    Safety Devices

    Compressor overheating protection,over-current protection,high and low pressure protection,over-temperature protection,traffic protection,phase sequence/phase loss protection,low level protection,frost protection

    Dimension

    With  tank

    mm

    620*600*1280

    Weight

    With  tank

    kg

    145

     Note: 1.The cooling capacity calculation is based on :the chilled oil inlet and outlet temperature
    30℃/25℃，the cooling air inlet and outlet tenperature 30℃/40℃.
               2.If you need oil tank inside oil chiller or have any other special requirements,please
    indicate it when place the order .
              3.Specification and dimension above are subject to change without notice.


    1.How does a chiller system work?
    Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.

    2. How to Choose The Right Oil Chillers ?

    2.1 Cooling Capacity

    Pls tell us the cooling capacity of oil chiller in KW/Ton/Btu/h /Kcal/h , if you don‘t know please tell us the main power (kw )of your hydraulic sysyem;

    2.2  Power

    Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

    Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

    in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

    in Mexico ,the power supply is 220V 60HZ 3PH;

    In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on

    2.3 Oil Pump and Oil Tank

    Please confir, the oil chiller whether need built with oil pump and oil tank inside  or not ?

    2.4 Refrigerant

    R22, R410A, R407C, R404A, R134A are optional choices.

    R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

    R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.

    R407C: a good replacement for R22, good cooling effect.

    R404A: suitable for application that requires low temperature(below -10°c).

    R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.



    3. Cooling capacity unit conversion?

       1 KW=860 kcal/h ;

       1 TON=3.517 KW;

       1 KW=3412 Btu/h;

    4. Chiller maintenance?
    Step 1: Keep Tubes Clean
    Step 2: Ensure a Leak-free Unit
    Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
    Step 4: Analyze Oil and Refrigerant
