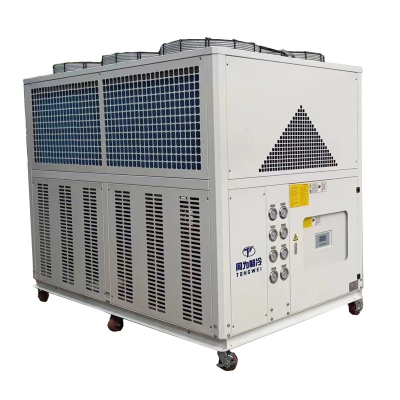

Industrial Chiller

Coil in SS Water Tank Evaporator


 SS Plate Type+ Water Tank Evaporator



Shell and Tube Evaporator

2.3 Water Pump
The water pump is designed to increase the pressure and the flow of the chilled water in a closed space.
the water pressure water pump for chiller is about 2 bar , but if you need more higher water pressure , pls tell us when you inquiry .For example ,when you use chillers for cooling bottle blowing machine ,the water pressure for water pump need about 4 bar .

Water Pump


High Pressure Water Pump

2.4 Condenser

The condenser for industrial air cooled chiller unit is equipped with efficient cross-seam fins and female threaded copper tubes for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.


Aluminum fin+fan Condenser

2.5 Controller Panel
Tongwei chillers use precision digital temperature controller, it RS485 communication port，which can do remote monitoring and control. Simple operation, low failure rate, high safety factor, easy installation.

Controller Panel

3.Features of Heating And Cooling Chiller:

   • Provide cooling or heating circulating water and maintain the temperature tolerance at ±2℃. One button operation, convenient to control temperature.
   • Outlet water temperature from 5℃ to 90℃ for cooling or heating.
   •Original branded Panasonic/Danfoss compressor from Japna & Denmark, features with built-in safety protection, low noise, power-saving and durability.
   • Original SCHNEIDER electrical components.
   •Intelligent error correction and buzzer alarm system, high level degree of automation.

4.How I Can Choose The Right Heating And Cooling Chiller System?

There are four important chiller specifications you need consider when you choose a chiller for your application :the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.

4.1 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on

4.2 Water Pump

When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.

4.3 Refrigerant

R22, R410A, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.

4.4 Evaporator Choose

Chillers generally have two types of evaporators: one is coil in water tank evaporator ,the other one is shell and tube evaporator.

Coil and tank evaporator, which has a built-in water storage tank for more convenient use,so there’s no need for extra buffer tanks. This is also our standard evaporator for chiller , if you don’t have buffer tank ,we just use this evaporator for your chiller.(See Above 2.2)

Shell and tube type evaporator, which requires an additional water buffer tank to connect .(See Above 2.2)

5.Industrial Applications of Heating And Cooling Chiller System

Industrial chiller unit is very popular water cooling system that can provide steady and reliable water cooling sources for both industrial and commercial usage.
Industrial chiller unit is also widely used in plastic industry and food industry .

5.1 Plastic Industry

Industrial chiller unit is also widely used in plastic processing and plastic industry including plastic injection molding, plastic extruders, and extrusion lines, blowing molding machines.
The function of using an stationary water-cooled chiller is to provide the cooling water flow rate for cooling the plastic mold temperature down to make sure the product quality and production efficiency.

Industrial Chller Unit For Plastic Industry

5.2 Food Industry

Indsutrial chiller unit is important in the food industry to maintain temperature control, preserve quality, support various production processes, and comply with regulations.

Industrial Chiller Unit For Food Industry

6.Contact Us to Learn More About Our Industrial Heating And Cooling Chiller System

Don’t delay in making the best decision for your manufacturing business and your future by increasing your production capabilities with an industrial chiller system. Contact us today for more information on a industrial chiller unit.
Our probessional team will help you with any questions you have on our industrial air chiller unit. We look forward to hearing from you!
