1.What is Portable Chiller?

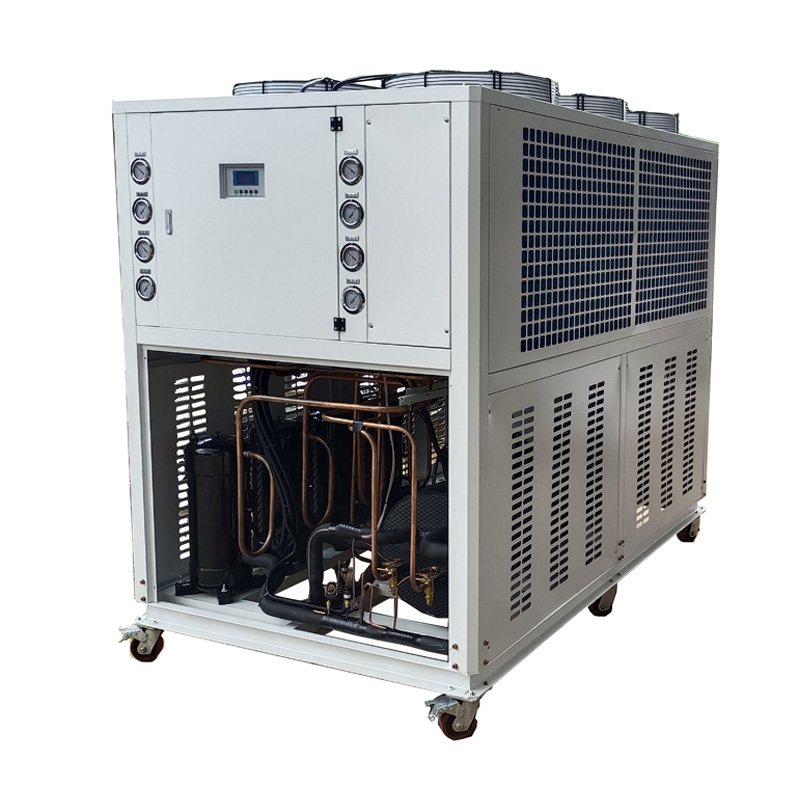

Portable Water-cooled Process Chiller
3.How Does A 40 Ton Portable water-cooled Process Chiller Work?
40 Ton Portable Water-Cooled Process Chiller Installation
4.What Are The Main Components Of Portable Water Cooled Process Chiller?
4.1 Compressor
The compressor is the key mover in portable Water Cooled Process Chiller because it produces pressure variations to stir the refrigerant around.
For 40 Ton chiller , which is with four units Panasonic/Danfoss brand compressor, using R410A/R407C refrigerant,this brand compress is with high refrigeration efficiency,low noise ,energy saving,environmental protection and durability,safety and stability.
Panasonic Compressor
4.2 Evaporator
The evaporator is a crucial component of portable water-cooled process as it is responsible for extracting heat from the liquid being cooled,it is located between the compressor and the expansion valve. There are three types of evaporators : coil in water tank evaporator , shell and tube evaporator, 304SS stainless steel plate type evaporator.
Coil in SS Water Tank Evaporator
SS Plate Type+ Water Tank Evaporator
Shell and Tube Evaporator
4.3 Water Pump
The water pump is designed to increase the pressure and the flow of the chilled water in a closed space.
the water pressure water pump for chiller is about 2 bar , but if you need more higher water pressure , pls tell us when you inquiry .For example ,when you use chillers for cooling bottle blowing machine ,the water pressure for water pump need about 4 bar .
Water Pump
High Pressure Water Pump
4.4 Condenser
The condenser for portable water cooled process chiller is shell and tube ,with the internal copper tubes employing an outer thread embossing process.This design effectively enhances the heat exchange efficiency between the refrigerant and water during the process. Compared to traditional smooth copper tubes, the outer thread embossing process increases the surface area of the copper tubes, thereby expanding the contact area for heat exchange and improving the thermal conductivity of the condenser. This optimization design allows the condenser of the water-cooled chiller to transfer heat from the refrigerant to the water more rapidly and consistently, enabling the water to carry away the heat.
Shell and tube Condenser
4.5 Controller Panel
Tongwei chillers use precision digital temperature controller, it RS485 communication port，which can do remote monitoring and control. Simple operation, low failure rate, high safety factor, easy installation.
Controller Panel
5.How I Can Choose The Right Portable Water-cooled Process Chiller?
There are four important chiller specifications you need consider when you choose a chiller for your application :the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.
5.1 Power
Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.
Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;
in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;
in Mexico ,the power supply is 220V 60HZ 3PH;
In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on
5.2 Water Pump
When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.
5.3 Refrigerant
R22, R410A, R407C, R404A, R134A are optional choices.
R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.
R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.
R407C: a good replacement for R22, good cooling effect.
R404A: suitable for application that requires low temperature(below -10°c).
R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.
5.4 Evaporator Choose
Chillers generally have two types of evaporators: one is coil in water tank evaporator ,the other one is shell and tube evaporator.
Coil and tank evaporator, which has a built-in water storage tank for more convenient use,so there’s no need for extra buffer tanks. This is also our standard evaporator for chiller , if you don’t have buffer tank ,we just use this evaporator for your chiller.(See Above 2.2)
Shell and tube type evaporator, which requires an additional water buffer tank to connect .(See Above 2.2)
6.How Choose Water Cooling Tower For Your Portable Water Cooled Process Chiller?
There are three important temperature factors you need to consider when choosing a cooling tower for water cooled screw chiller: inlet hot water temperature, outlet cold water temperature, and wet bulb temperature. The hot water temperature is that which enters the tower. The cold water temperature is that which leaves the water while the wet bulb temperature refers to the prevailing temperature of the geographic region where the tower is located.
Approach is the term used to refer to the difference between the temperatures of the water source as it enters the tower versus the temperature of the water once it has left the tower. This is a crucial determiner of the effective of the heat exchange process.
To choose the right cooling tower, mechanical efficiency should be given priority. This refers to the amount of fan power needed to circulate ambient air within the cooling tower. The range – or the difference in temperature between hot and cold water – is also crucial as it will impact energy usage.
so to find out how to choose a cooling water tower with sufficient cooling capacity, you should understand what circumstances require the use of a cooling tower. Please find the below water cooling tower is suitable for water cooled screw chiller :
Cooling Capacity of Chiller Water Cooling Tower Capacity
5HP(16KW/4 Ton) 15 Ton
6HP(19KW/5 Ton) 15 Ton
8HP(25KW/7 Ton) 20 Ton
10HP(30KW/8 Ton) 20 Ton
12HP(40KW/11 Ton) 25 Ton
15HP(50KW/14 Ton) 25Ton
20HP(65KW/18 Ton) 30 Ton
25HP(80KW/22 Ton) 40Ton
30HP(100KW/28 Ton) 40 Ton
40HP(130KW/37 Ton) 50 Ton
50HP(153KW/43Ton) 60 Ton
60HP(200KW/56 Ton) 80 Ton
Water Cooling Tower
7.What is the Difference Between Portable Air Cooled Chiller and Portable Water Cooled Chiller?
Portable Air-cooled and portable water-cooled chillers are both types of chillers used for cooling applications in various industries.
The main difference between portable air cooled chiller and portablewater cooled chiller is condenser :
The condenser of an portable air cooled chiller is cooled by the ambient air,which the heat generated during the cooling process is dissipated into the surrounding air;
Portable Water Cooled Chiller with a shell and tube water-type condenser that is attached to a cooling tower and is typically used in medium and wide installations where water is available.So Water cooled screw chiller need connect with water cooling tower and water cooling pump outside , the installation is more trouble than air cooled screw chiller .
But if your ambient temperature is very high above 50℃,we suggest you use portable water cooledchiller ,as portable water cooled chiller may consume more energy to achieve the same cooling capacity due to the limitations of air as a heat exchange medium and portable water cooled chiller uses constant water source for more stable and efficient heat dissipation,so in high ambient temperature , portable water cooled chiller is more energy-efficient and better choice for your application .
8.What Are Differences Between Stationary Chiller and Portable Chiller ?
The main difference between stationary chiller and portable chiller is that :
Stationary chiller does not include a pump or tank inside , which need buffer water tank and water pump outside;
Portable chiller combines all necessary components including – the refrigeration circuit, full diagnostic touch screen controllers and electrics, process pump ,a reservoir tank,which is easily to install.
Stationary Water-Cooled Chiller Portable Water-Cooled Chiller
9.Contact Us to Learn More About Our Portable Water-Cooled Process Chillers
Don’t delay in making the best decision for your manufacturing business and your future by increasing your production capabilities with an protable water-cooled process chiller. Contact us today for more information on a portable water cooled process chiller.
Our probessional team will help you with any questions you have on our portable water-cooled process chiller units. We look forward to hearing from you!
