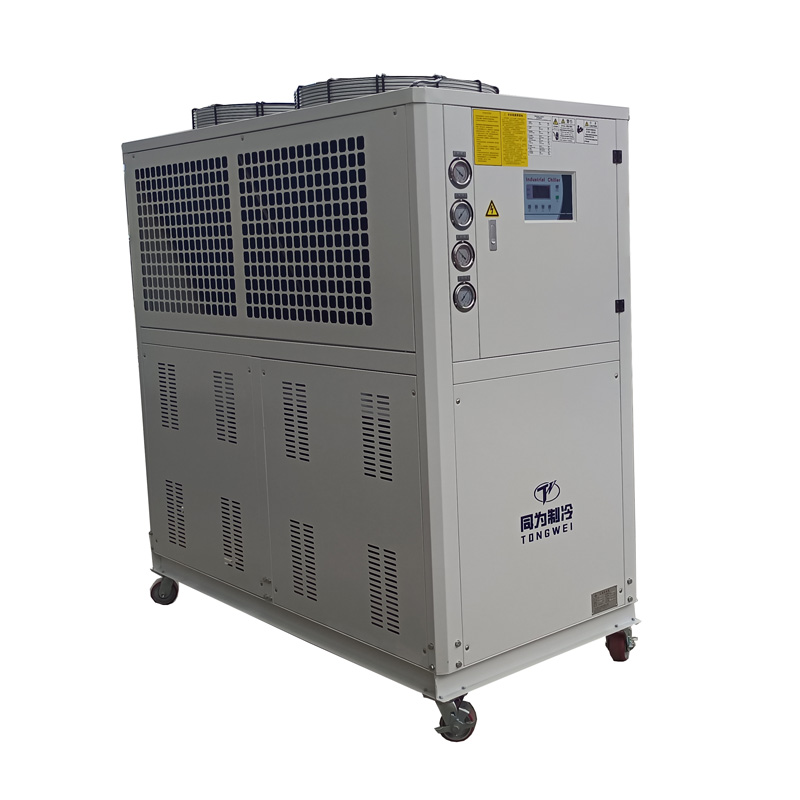

Cooling And Heating Chiller

2.3 Water Pump
The water pump is designed to increase the pressure and the flow of the chilled water in a closed space.
the water pressure water pump for chiller is about 2 bar , but if you need more higher water pressure , pls tell us when you inquiry .For example ,when you use chillers for cooling bottle blowing machine ,the water pressure for water pump need about 4 bar .

Water Pump


High Pressure Water Pump

2.4 Condenser

The condenser for cooling and heating chiller is equipped with efficient cross-seam fins and female threaded copper tubes for high heat exchange efficiency and good stability.Its function is to cool down the refrigerant steam released from the compressor into a liquid or gas-liquid mixture.


Aluminum fin+fan Condenser

2.5 Controller Panel
Tongwei chillers use precision digital temperature controller, it RS485 communication port，which can do remote monitoring and control. Simple operation, low failure rate, high safety factor, easy installation.

Controller Panel

3.Applications of Cooling and Heating Chiller

cooling and heating chillers are very popular refrigeration system that can provide steady and reliable water cooling sources for both industrial and commercial usage,they are also widely used in plastic industry.food industry and other industries.

3.1 Plastic Industry

cooling and heating chillers are also widely used in plastic processing and plastic industry including plastic injection molding, plastic extruders, and extrusion lines, blowing molding machines.
The function of using a cooling and heating chiller is to provide the cooling water flow rate for cooling the plastic mold temperature down to make sure the product quality and production efficiency.

 Plastic Industry

3.2 Food Industry

cooling and heating chillers are important in the food industry to maintain temperature control, preserve quality, support various production processes, and comply with regulations.

Food Industry

4. How I Can Choose The Right Cooling and Heating Chiller?

There are four important chiller specifications you need consider when you choose a chiller for your application :the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.

4.1 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on

4.2 Water Pump

When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.

4.3 Refrigerant

R22, R410A, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.

4.4 Evaporator Choose

Chillers generally have two types of evaporators: one is coil in water tank evaporator ,the other one is shell and tube evaporator.

Coil and tank evaporator, which has a built-in water storage tank for more convenient use,so there’s no need for extra buffer tanks. This is also our standard evaporator for chiller , if you don’t have buffer tank ,we just use this evaporator for your chiller.

Shell and tube type evaporator, which requires an additional water buffer tank to connect .

5.Contact Us to Learn More About OurCooling and Heating Chiller

Don’t delay in making the best decision for your manufacturing business and your future by increasing your production capabilities with cooling and heating chiller. Contact us today for more information on a cooling and heating chiller.
Our probessional team will help you with any questions you have on our cooling and heating chillers. We look forward to hearing from you!
